Author Topic: Custom Charts and Lake mapping FREEWARE  (Read 12864 times)

0 Members and 1 Guest are viewing this topic.

Offline l889

  • Newbie
  • *
  • Joined: Aug 2013
  • location: Europe
  • Posts: 6
  • Unit(s): 798HDSI
Custom Charts and Lake mapping FREEWARE
« on: August 03, 2013, 03:18:37 AM »
Hi!

My name is John. I've written some software to do mapping of recorded HT tracks and generating depth maps using Humminbird echos. Some of you would know my software published in "Unofficial HB Forum" since last year. So I think it's time to say hello in this forum, and introduce my free software:

### HBTrackMapper ###

Using HBTrackMapper, you are able to map a lake from few recorded traces. The recording is done using your Humminbird and also it is possible to display the mapped chart on your Humminbird! All you need is some recorded tracks from your lake and this software.



Importing GPX KML and HT Files

- Load any number of GPX tracks or HT tracks recorded by your Humminbird.
- Add shoreline and island figures, drawn in Google Earth and exported to KML or GPX.
- You are able to set custom colors, which will result in nice images.



- Using the editing tools you could delete wrong recording points and merge multiple files to a big project. Save and load this project as an GPX file.

Prepare Mapping

- Interpolate with a very good algorithm values between the tracks and create a depth map. You will love it's extrapolation width which could be set to your needs. It is possible to get a nice map with just a few tracks with distances of more than 50m between.

- Setup custom discover width!

- Mapping is using all CPUs of your machine, so you'll get finished faster.



After mapping

- This is the mapped image!



ISO lines

- Now it's time to create an ISO style map. Setup the depth difference of each line and start it:
- After calculation you could export this file as an GPX to view on your Garmin GPS...

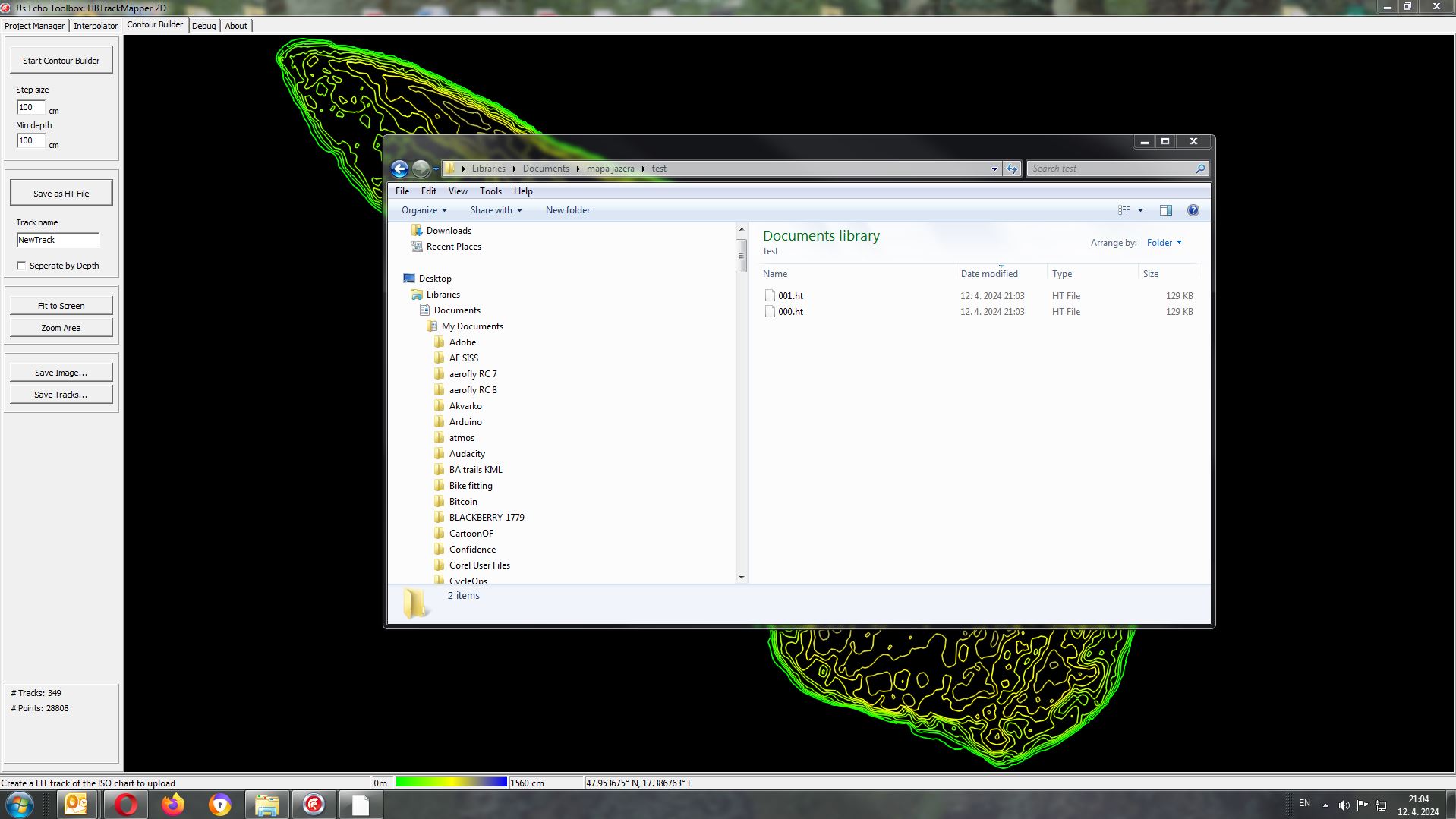

Exporting maps for Humminbird units

- Create an HT file of the ISO map to view it on your Humminbird while fishing!



Save as an HT-File to SD Card and upload to your Humminbird. It is also possible to upload via serial connection (please contact me for further instructions!).



- Have better fishing results with custom charts!



- Zoomed:



Using the free software "Blender" it is possible to render such nice images from a mapped lake...



Just set mapping color to black/white and map an image, save it as a heightmap and follow the instructions given in this guide:
how to make terrain in blender



Download here: http://www.lnx-ware.de/echotoolbox/HBTrackMapper_V10.exe

This is postcardware.
Please donate or write a postcard! Such projects will survive only when supported.
And hey! Didn't you save money and time when using free software? So please write me an postcard showing your region! Mail address provided via PM.

Please contact me via PM  for any problem solving or support.


Offline 4d-rock

  • Jr. Member
  • **
  • Joined: Apr 2013
  • location: Wabigoon, ON
  • Posts: 71
  • Unit(s): 997c SI, 778c, 570
  • Software: 6.30
Re: Custom Charts and Lake mapping FREEWARE
« Reply #1 on: August 03, 2013, 08:22:23 AM »
Hey John,
Thanks for putting this together.
I've been playing around with some of the earlier versions since I got a Side imaging unit this spring.  However, I haven't really been able to get a good map out of it yet.  Once I add all my files (incomplete shorelines due to a big lake, as well as my tracks from the humminbird) I then try to interpolate.  When I do this, I get a black screen with the shorelines.  I played around a bit more, and the program thinks that the land side of the shoreline is actually the water, so it isn't creating the contours in the lake.  Is there a way to dictate what side of a kml line is the water side, and which side is the land side?

Thanks,
Adam

Offline l889

  • Newbie
  • *
  • Joined: Aug 2013
  • location: Europe
  • Posts: 6
  • Unit(s): 798HDSI
Re: Custom Charts and Lake mapping FREEWARE
« Reply #2 on: August 04, 2013, 03:18:53 AM »
Hi Adam!

Islands are detected by the program when they comply following conditions:

- closed island shape
- all islands are _inside_ the main shoreline

The second condition will create some problem, when you try to map a very very big lake, where you don't provide a closed shoreline... In such a case you should try to close the shoreline in any way (rectangular) to give the program an mapping canvas. Try the newer versions, there are a lot of improvements since prior releases.

Best regards!
John

Offline 4d-rock

  • Jr. Member
  • **
  • Joined: Apr 2013
  • location: Wabigoon, ON
  • Posts: 71
  • Unit(s): 997c SI, 778c, 570
  • Software: 6.30
Re: Custom Charts and Lake mapping FREEWARE
« Reply #3 on: August 05, 2013, 08:47:05 AM »
Alright thanks for the suggestions John.

I will modify my shorelines accordingly and see how things go in the new version.


Offline 4d-rock

  • Jr. Member
  • **
  • Joined: Apr 2013
  • location: Wabigoon, ON
  • Posts: 71
  • Unit(s): 997c SI, 778c, 570
  • Software: 6.30
Re: Custom Charts and Lake mapping FREEWARE
« Reply #4 on: August 12, 2013, 01:48:00 PM »
Well I was able to make an alright map from some of my recordings, though I will need to do some gap filling as there is a lack of data in some areas.

A quick question though.  Is there a way to either change the colour of the scale, or possibly shade between the lines based on depth (similar to what you see on navionics or lakemaster maps).

It would just be easier to visualize depths than the green shades that it defaults to.

Thanks

Offline l889

  • Newbie
  • *
  • Joined: Aug 2013
  • location: Europe
  • Posts: 6
  • Unit(s): 798HDSI
Re: Custom Charts and Lake mapping FREEWARE
« Reply #5 on: September 01, 2013, 02:38:21 AM »
yes, click on the depth reading (0 m...max m) on the bottom bar next to the gradient, then there will pop up a color dialog. But that's only for the app. However, the color scale on the Humminbird couldn't be changed  :(
« Last Edit: September 01, 2013, 02:42:43 AM by l889 »

Offline lovehummin

  • Newbie
  • *
  • Joined: Dec 2013
  • location: shanghai
  • Posts: 1
  • Unit(s): 997C
  • Software: 4.750
Re: Custom Charts and Lake mapping FREEWARE
« Reply #6 on: January 30, 2014, 01:10:36 AM »
Hello John.
Thank you very much ask me HBTrackMapper and Blender.

now I don't know How to paint Blender's 3D image(According to the depth gradation paint)
If you know it. Please ask me.

ks411vm@hotmail.com


Offline sfw1960

  • Bringer Of The 'Bird
  • Sr. Member
  • ****
  • Joined: Jul 2010
  • location: White Cloud , MI
  • Posts: 422
    • http://www.michigan-sportsman.com/forum/member.php?u=3330
  • Unit(s): H10MSI G2N-H10MDI G2N-H12SI-H12MSI G2N
  • Software: v1.840 x 3, v1.830
  • Accessories: AS GPS HS x2, I-Pilot Link, RC-1, RC-2
Re: Custom Charts and Lake mapping FREEWARE
« Reply #7 on: July 31, 2014, 09:27:11 AM »
Any place you can still down load this from???

Offline l889

  • Newbie
  • *
  • Joined: Aug 2013
  • location: Europe
  • Posts: 6
  • Unit(s): 798HDSI
Re: Custom Charts and Lake mapping FREEWARE
« Reply #8 on: July 31, 2014, 01:12:29 PM »
please check first post for download link.

Offline sfw1960

  • Bringer Of The 'Bird
  • Sr. Member
  • ****
  • Joined: Jul 2010
  • location: White Cloud , MI
  • Posts: 422
    • http://www.michigan-sportsman.com/forum/member.php?u=3330
  • Unit(s): H10MSI G2N-H10MDI G2N-H12SI-H12MSI G2N
  • Software: v1.840 x 3, v1.830
  • Accessories: AS GPS HS x2, I-Pilot Link, RC-1, RC-2
Re: Custom Charts and Lake mapping FREEWARE
« Reply #9 on: July 31, 2014, 04:51:12 PM »
Link didn't work earlier for me ~ TY!
Need some time to mess with it now!!

Offline gimez

  • Jr. Member
  • **
  • Joined: Dec 2014
  • location: Portugal
  • Posts: 20
  • Unit(s): matrix97 797
Re: Custom Charts and Lake mapping FREEWARE
« Reply #10 on: January 22, 2015, 04:03:34 AM »
hello! i need some help with this software... i try to build a map and evrything goes right, but when i try to see the map in my humminbird 797 the tracks are all conected with lines, not  segmented tracks. i think this software build segmented tracks, or not? I'm doing something wrong?
some help please...

thanks

Offline brisner

  • Newbie
  • *
  • Joined: Feb 2013
  • location: Florence, AL
  • Posts: 15
  • BER Custom Lure Painting
  • Unit(s): Onix 10 ci SI, 1158 DI HD
  • Software: 2.0, 7.530
Re: Custom Charts and Lake mapping FREEWARE
« Reply #11 on: January 22, 2015, 08:38:58 AM »
Does it work with the new Onix?

Offline Long Hair

  • Jr. Member
  • **
  • Joined: Apr 2015
  • location: Boone County Kentucky
  • Posts: 21
  • Unit(s): LCR 2000, LCR 8000, Helix 5 SI GPS
  • Software: 7.260
  • Accessories: TM Transducer
Re: Custom Charts and Lake mapping FREEWARE
« Reply #12 on: May 08, 2015, 02:51:27 PM »
Howdy, Does this program work with Helix 5? Windows 8.1 Pro? Is there a way to write the actual depths in numbers on the contour lines? Thanks
You can always make too much, work.

Offline Mars_Artis

  • Newbie
  • *
  • Joined: Mar 2018
  • location: Italy
  • Posts: 1
  • Unit(s): Helix 5 G2 chirp SI
  • Software: 1540
  • Accessories: none
Re: Custom Charts and Lake mapping FREEWARE
« Reply #13 on: March 26, 2018, 02:03:54 AM »
Anybody tested if HBTrackMapper maps can be used on HELIX 5 CHIRP DI GPS G2?
