New multi-channel sonar viewer
« on: June 30, 2014, 02:48:29 PM »
ReefMaster version 1.7 has now been released, and the sonar viewer has had a major makeover.

ila_rendered

   Support for Lowrance and Humminbird sonar log files.
   View any combination of available channels from primary, secondary, down-scan and side-scan, with pan, grab and zoom, and playback speeds up to 30x.

ila_rendered

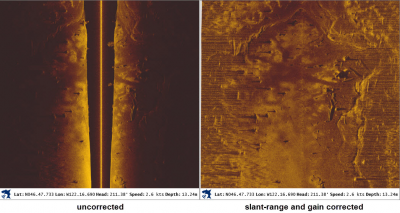

   Sophisticated gain correction for side-scan channels compensates for dark fringes and bright central area by evening out the signal curve.
   Real time slant range correction in side-scan channels eliminates the water column and geographically corrects the remaining side-scan image.

ila_rendered

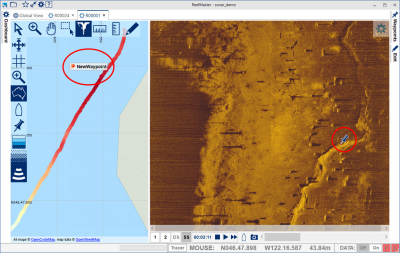

   Drop waypoints in any sonar channel display, with bearing and distance offset calculated for side-scan channels.

ila_rendered

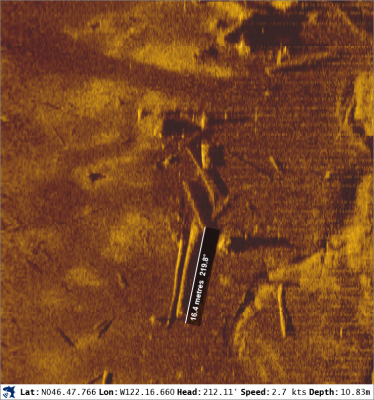

   Measure distance in any channel display.
   Estimate object height from shadow length in side-scan displays.
   Innovative Mouse Tracer feature shows the current mouse position in all visible displays.
   Export sonar viewer images to clipboard or file.

There are a bunch of other changes also, including big improvements to performance, an updated "look and feel" and an improved process for identifying and removing bad data points.

ReefMaster is not just mapping; the the sonar viewer and waypoint and track management features of ReefMaster are all available in the LITE edition, available at $75 without the 3D mapping features.

Trial extensions
If you've tried ReefMaster before, and used up your free trial, we'd still love you to try our new features. Please send an email to support (a) reefmaster.com.au and we will fix you up with another two week trial period.


ReefMaster - Waypoint Management and Underwater Mapping Software for Fishermen


Offline Bob B

  • Hero Member
  • *****
  • Joined: Oct 2010
  • Location: Creve Coeur, Il
  • Posts: 1568
  • Unit(s): 1197c si, 1198c si
  • Software: 6.310, 6.490
Re: New multi-channel sonar viewer
« Reply #1 on: June 30, 2014, 07:08:26 PM »
Can ONIX recordings be viewed?
**Looking for the one that makes it all worthwhile**

Offline matt@reefmaster

  • Moderator
  • *
  • Joined: Mar 2010
  • Location: Sydney
  • Posts: 115
  • Unit(s): 997
  • Software: 4.75
Re: New multi-channel sonar viewer
« Reply #2 on: July 01, 2014, 03:46:40 AM »
Not yet, but we're planning to Bob.
ReefMaster - Waypoint Management and Underwater Mapping Software for Fishermen

Offline Bob B

  • Hero Member
  • *****
  • Joined: Oct 2010
  • Location: Creve Coeur, Il
  • Posts: 1568
  • Unit(s): 1197c si, 1198c si
  • Software: 6.310, 6.490
Re: New multi-channel sonar viewer
« Reply #3 on: July 01, 2014, 10:47:33 AM »
Thanks
**Looking for the one that makes it all worthwhile**

Offline matt@reefmaster

  • Moderator
  • *
  • Joined: Mar 2010
  • Location: Sydney
  • Posts: 115
  • Unit(s): 997
  • Software: 4.75
Re: New multi-channel sonar viewer
« Reply #4 on: August 12, 2014, 11:41:55 AM »

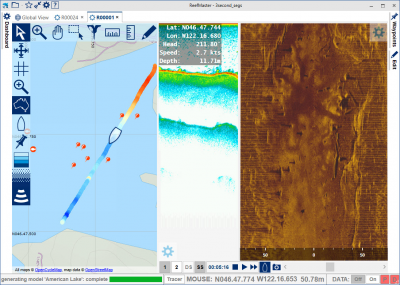

The new version of ReefMaster now supports ONIX files, including downscan:

ila_rendered
ReefMaster - Waypoint Management and Underwater Mapping Software for Fishermen
